Multiple course harps such as the double harp and the triple harp
are also capable of producing chromatic music without particular
mechanical devices. The double harp (see Laurie Riley's video on
this too) has two rows of parallel
strings and can be made to play chromatic music by tuning one row
of strings to the chromatic scale, while tuning the other one to
the diatonic scale. On these harps, one hand plays the chromatic
scale, whereas the other hand plays diatonic notes only. This order
cannot be switched, while playing. With the Italian Arpa Doppia
type, however, the
two rows of strings are attached to the same side of the neck and
the lateral distance between strings, which is minimal, allows
the player to reach the opposite row by sliding his-her fingers
through the strings.
A NEW BREED OF TRIPLE HARPS
Traditional triple harps are less popular than they used to be. In previous centuries they were played essentially in Wales, Ireland and Italy. Today, only a few players and builders of this instrument are still to be found in the British Isles. The triple harp is a complex instrument to play and arguably difficult to build too. It is a harp with three rows of parallel strings two that are tuned to the diatonic scale and a third one in between which is tuned to the pentatonic scale (sharps). The player plucks diatonic strings like an ordinary double harp and his fingers have to reach in between diatonic strings to sound sharps. This arrangement is not the most conducive to chromatic music playing and this may explain why the traditional triple harp has almost disappeared.

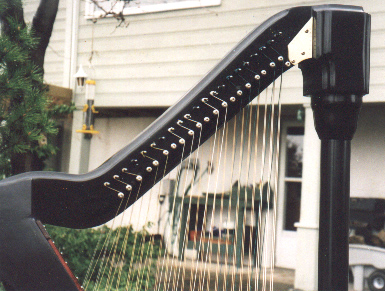

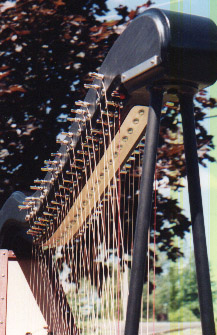

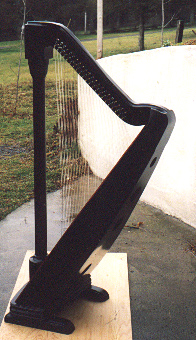

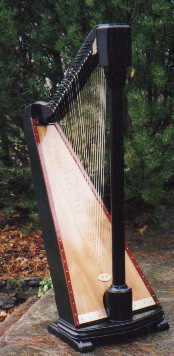

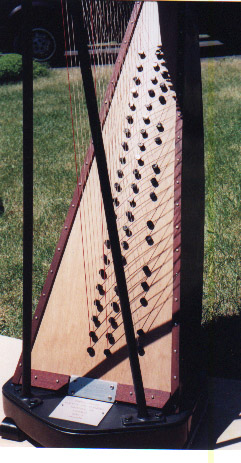

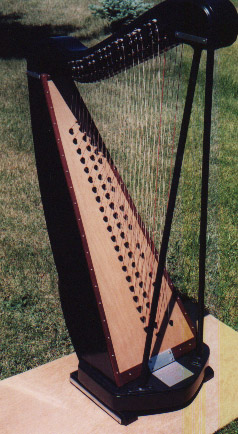

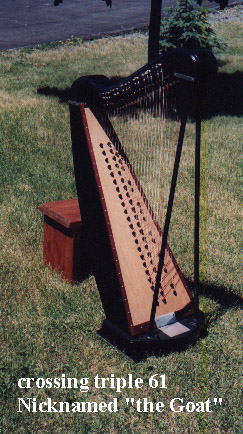

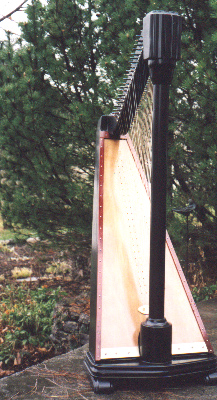

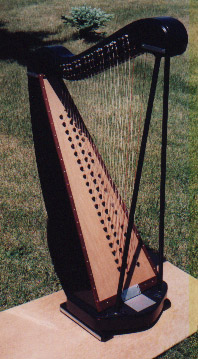

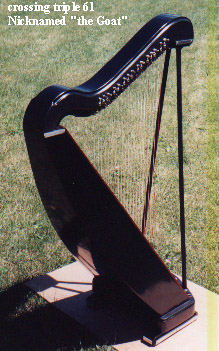

The CROSSING TRIPLE is a new approach to the triple harp. Or at least I am not aware of any precedent to its design. It is essentially a double harp (two ranks of parallel diatonic strings) with a third crossing row of sharps. i.e strings of the third row are not parallel to those of the diatonic rows as was the case of the traditional triple harp, but instead they intersect both rows of diatonic strings. In this arrangement, some sections of the sharp strings are outside the planes of diatonic strings and the player can reach them easily from both hands. This arrangement, of course, is reminiscent of the conventional cross strung chromatic harp. I have built these instruments and I believe that the proposed string configuration could be managed by any harp player, with a short transition.
The advantages of such a triple harp are obvious: a permanent chromatic instrument comparable to the cross strung chromatic harp (good bye levers) and... all of the wonderful assets of the double harp...doubling or splitting the melody between two hands, etc... without having to lift or lower sharping levers.
As is the case for all triple harps, the main disadvantage of this instrument is the number of strings (and tuning time).
The construction of the CROSSING TRIPLE has been the subject of an article in the Fall 1998 Folk Harp Journal.
ARPA DE DOS ORDENES (Spain)
According to Cristina Bordas ("The Double Harp in Spain from the
16th to the 18th Centuries", in Early Music, May 1987,p 152)
formal references to the Spanish cross strung chromatic harp date back
to 1616. The Arpa de dos ordenes appears indeed to be the mother of
all cross strung chromatic harps. The Arpa de dos ordenes was a
harp equipped with two ranks of crossing strings and was created
sometime at the end of the 16th Century. According to Cristina
Bordas , (op. cit. p 148), at the dawn of the 17h Century the
cross strung chromatic harp had already "developed a separate
identity".
Cristina Bordas also states that all the surviving instruments
were made in the 17th and early 18th centuries and that they were all
built following specific rules of proportions established by the
Franciscan Pablo Nasarre. The strings (commonly gut, but
occasionally metal) were all attached from one side of the neck,
forming two rows of pins set at distinct levels. This pin level
difference was a fundamental characteristic of the Arpa de dos
ordenes; it was what would cause the strings to cross, somewhere
close to the neck and what would allow both hands to play either
the chromatic strings or the diatonic ones. The playing position
of the fingers was in the upper part of the strings, near their
crossing point. The Arpa de dos ordenes had a straight round
pillar, small holes on the sound board. The neck was thin and of
an even thickness, its harmonic curve was of a single gentle curve
type, providing a rather flat plucking line. Such harps were
built in various sizes. Some were made of walnut with a spruce
soundboard; the soundbox was of light construction, compared to
northern Europe harps, the back was reinforced with up to seven
longitudinal and up to four transversal braces. The fame of the
Arpa de dos ordenes in both liturgical and profane music peaked
at the end of the 17th century. It started declining in the 18th
century. In the second half of the 18th century it had fallen
into disuse, progressively giving way to the new pedal harp.
Today, however, historical replicas of the Nasarre based Arpa de
dos ordenes are still being built in Spain by a violero called
Pedro Llopis Areny. Mr Llopis Areny has dedicated 18 years of his
career to the research and documentation of these instruments.
His fac simile harps all follow strict historical rules of
proportions, which are the fundamental requirement for building authentical
Arpa de dos ordenes. Mr Llopis Areny builds various sizes of Arpa de
dos ordenes, up to 52 strings. The Arpa de dos ordenes is also taught
formally in Spain. In October 1996, Nuria Llopis Areny is opening
the Escuala de Arpa Espag ola which will focus on the teaching of
this wonderful instrument. (Nuria's address can be found in here).
21)
The Pleyel harp was born in Paris at the end of the 19 century.
According to the music historian Hannelore Devaere who produced
an excellent university dissertation titled: "La harpe Pleyel:
origines, construction, technique, accueil". (also available in
Dutch) Université de Louvain. 1988, chromaticism was becoming an
important part of the music written in that era, and this new
fashion was putting unprecedented demands on pedal harps. In
essence, the pedal harp (even the dual action type) was
experiencing some difficulty in keeping with the demand of a new
music such as that of Wagner, Liszt, D'Indy, Charpentier, Faure,
Richard Strauss and Debussy. At the turn of the 20th century,
Gustave Lyon, who was the Director of the Pleyel & Wolff Company,
manufacturing pianos in Paris, reflected on these problems and
proposed the cross stringing solution.
The cross strung configuration was adopted by Pleyel as
a means to provide for a row of sharps and a row of diatonic
strings.
These were attached on either side of a neck, widening from the
soundbox to the pillar. This setting would allow the player to
pluck diatonic notes or accidentals on either side of the neck.
The "Pleyel harp" was in fact a long series of harps in constant
evolution over thirty years. The Pleyel harp was a rather heavy
instrument, most of these harps were generally of the size of a
full size concert pedal harp. Some of them were actually heavier,
because they were equipped with a metal neck and pillar. The
strings crossed half way.
A modest number of music compositions were produced for the
instrument. The best known of these compositions is the "Danse
avec double quatuor cordes: Danse sacree, danse profane", by Claude
Debussy, 1904.
The Pleyel harp met some success in Europe at the turn of the
Century. The Pleyel Company built 930 chromatic harps until World
War Two. La "harpe chromatique" never reached the fame of the
pedal harp, as some observers of the time, and its designer Gustave
Lyon, expected. Several factors militated against the Pleyel chromatic
harp. The harpist community, instead of looking at the Pleyel
harp as a convenient alternative to play fast chromatic passages,
common in the 19th Century music, remained sceptical. Although it was in
many respects more suited to the 19th Century music than the
pedal harp, the Pleyel harp was not as versatile an instrument as
Gustave Lyon would have hoped. Because of its considerable string tension
and the great number of strings (78+) maintaining the instrument
in tune was a challenge. The volume of the instrument, perhaps
because of its heavy construction, was never as strong as the pedal
harp's. Glissandi, which is a characteristic of concert harp music could
only be executed in the key of "C" in which the chromatic harp
was always tuned. The "Harpe chromatique" remained a marginal
instrument, it was however taught in conservatories in France,
Belgium and probably Germany. Today, the Pleyel harp is still
taught formally in Belgium. Mrs Odile Tackoen, who dedicated a
lifetime to the teaching of this instrument, has published a well
thought out method called "Approche de la Harpe chromatique, son
histoire, sa technique, son r pertoire. Exercices et morceaux
divers pour d butants" 1985. In the USA, Ben Brown teaches
this instrument has produced a booklet called:" The little Cross
strung Harp Book" available at String Crossing. P.O. Box 1183
Portage MI 49081.
